ChemBall
| PFA Lined Ball Valve
Join the Valve Revolution!
Patented Truefloat Technology ®
Security²
ChemBall sets the new standard for your operational safety and security
Maintain optimum performance

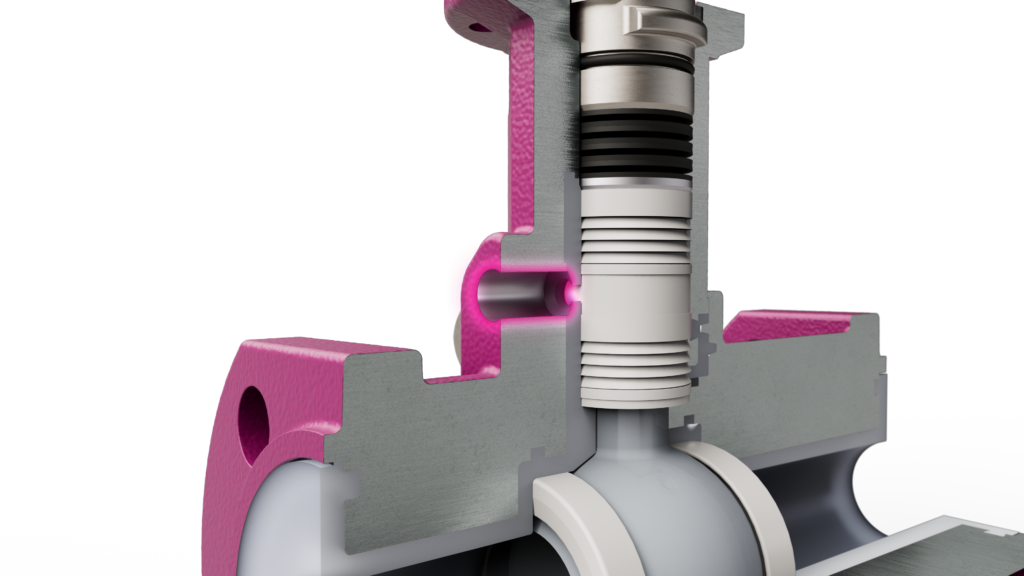

When applications need increased safety measures, a leackage detection port may be added to your ChemBall to meet advanced monitoring requirements and help schedule maintenance.
Safeguard your critical applications
For our customers in severe service industries and beyond, a second set of chevron seals is added, increasing the sealing power to eliminate fugitive emissions.
Secure your working environment
The interlocking labyrinth seal prevents aggressive & corrosive fluids from escaping through the body. Even at high pressure, the maze-like construction keeps your system closed off from the outside world.
Design
Multiculti!
Multiculti!The ChemBall | CSB is well suited to all cultures: Flange connections and face-to-face lengths are available in EN, ASME & JIS. In addition, stem connections come in 3 choices.
Maintenance Friendly
Maintenance FriendlyThe ChemBall | CSB is designed to be user-friendly and easy to maintain. The bayonet mount makes the replacement of chevron seals effortless and the integrated stand makes the life of every engineer easier.
TrueFloat®-Technology
TrueFloat®-TechnologyOur worldwide patented design combines the
advantages of both floating and trunnion ball
valves: a single-piece PFA coating encloses
the dynamic, metallic connection
between ball and stem, preventing age-related wear.
Security ²
Security ²For safety-critical applications, an optional,
second chevron seal ensures increased security
requirements are met. An optional leak detection port between the chevron seals
offers integration with plant monitoring
systems, providing extra reassurance against
fugitive emissions.
In addition, the sophisticated labyrinth seal tightly and reliably
seals the two body halves for maximum security.
Form Follows Function!
Form Follows Function!Axial grooves improve flow through the valve, while simultaneously anchoring the PFA lining, meaning that sustained operation in vacuum applications is safe and secure.
Multiculti!
Produced to international dimensions and connections, the ChemBall will fit into your plant, wherever it is in the world
Form Follows Function!
Even with the stunning looks of the ChemBall, every part is designed for maximum performance and durability, even in vacuum applications.
Maintenance Friendly
Smart features, such as an interlocking bayonet mount and built-in stand for better handling, mean you can work faster, saving money and reducing downtime.
Security ²
For safety-critical applications, an optional, second chevron seal ensures increased security requirements are met. An optional leak detection port between the chevron seals offers integration with plant monitoring systems, providing extra reassurance against fugitive emissions.In addition, the sophisticated labyrinth seal tightly and reliably seals the two body halves for maximum security.
TrueFloat®-Technology
Our worldwide patented design combines the advantages of both floating and trunnion ball valves: a single-piece PFA coating encloses the dynamic, metallic connection between ball and stem, preventing age-related wear.
Manufacturing
Facts
Nominal Diameter:
DN15-200 | 1/2″-8″
Flange Connections:
EN 1092-1, PN 10–16 | ASME B16.5, Class 150 | JIS 10K
Top Flange:
ISO 5211
Maximum Working Pressure:
16 bar
Operating Temperature:
-20°C to 200°C
Face-to-Face Length:
EN 558, Row 1 | ASME B16.10, Class 150, Row 20/21
Materials:
Stainless Steel | PFA
Conformity:
PED 2014/68/EU | ATEX 2014/34/EU |
Food (EC) No 1935/2004 | FDA | TA-Luft | ISO 15848-1
Pressure Test:
EN 12266-1
Facts
Nominal Diameter:
DN15-200 | 1/2″-8″
Flange Connections:
EN 1092-1, PN 10–16 | ASME B16.5, Class 150 | JIS 10K
Top Flange:
ISO 5211
Maximum Working Pressure:
16 bar
Operating Temperature:
-20°C to 200°C
Face-to-Face Length:
EN 558, Row 1 | ASME B16.10, Class 150, Row 19
Materials:
Ductile Iron | PFA
Conformity:
PED 2014/68/EU | ATEX 2014/34/EU |
Food (EC) No 1935/2004 | FDA | TA-Luft | ISO 15848-1
Pressure Test:
EN 12266-1
